Male UNF Adjustable to BSP Male Blocked 90° Adaptors Ireland
Male UNF Adjustable to BSP Male Blocked 90° Adaptors Ireland

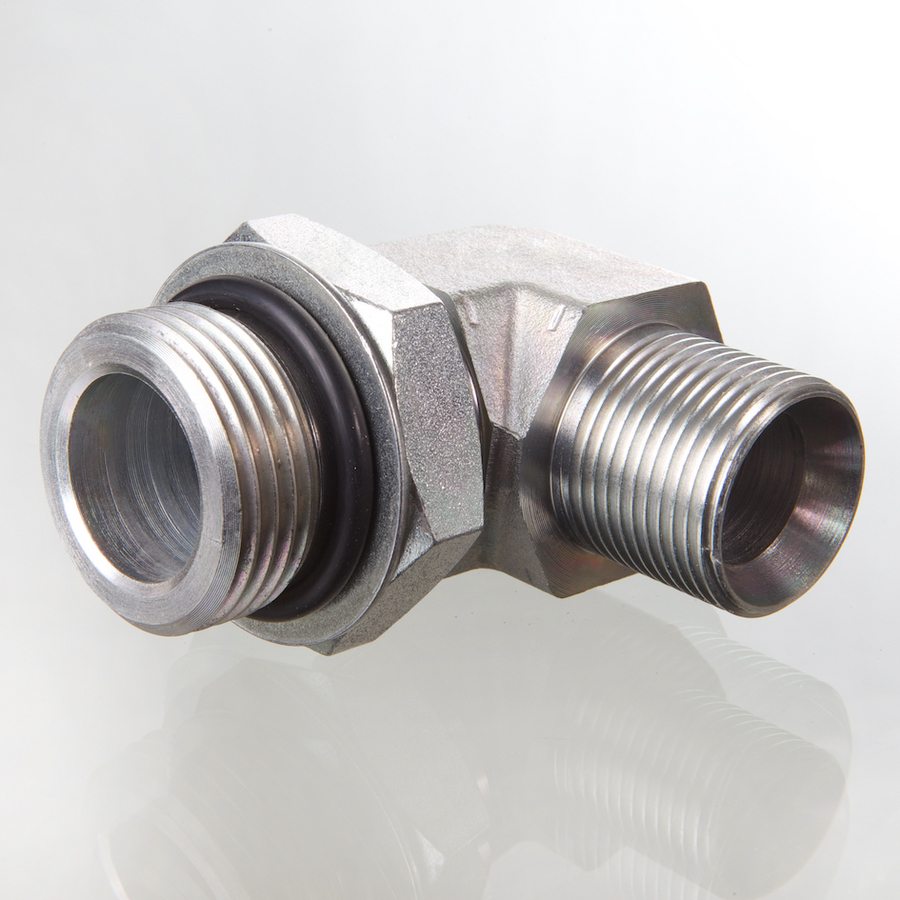

This category features male UNF adjustable to BSP male blocked 90° hydraulic adaptors, designed for secure and reliable connections in hydraulic systems. These adaptors are commonly used by farmers, engineers, and mechanics across Ireland who require a robust solution for joining UNF and BSP threaded components at a right angle. Suitable for agricultural, mechanical, and workshop environments, these adaptors help ensure leak-free performance and efficient fluid transfer where space is limited.
Key features & uses
- Key features include a 90° blocked design, adjustable UNF male thread, and BSP male thread compatibility. Typical uses include connecting hoses, pipes, or hydraulic components in tractors, machinery, and industrial equipment where a right-angle connection is needed.
Related categories
Filters
Connection 1
UN male thread, parallel
Connection 2
BSPP male thread, parallel
Construction type
screw-in socket
Customs tariff number
73079290
G1
UN 1.1/16 -12
UN 1.5/16 -12
UN 1.5/8 -12
UNF 1/2 -20
UNF 3/4 -16
UNF 7/16 -20
UNF 7/8 -14
UNF 9/16 -18
G2
G 1 -11
G 1.1/4 -11
G 1/2 -14
G 1/4 -19
G 3/4 -14
G 3/8 -19
G 5/8 -14
Material
steel
OR
16.36 x 2.20
19.18 x 2.46
29.74 x 2.95
37.47 x 3.00
SW
11 mm
14 mm
27 mm
33 mm
Sealing form 1
O-ring seal, on screw-in socket
Sealing form 2
60 inner cone
Standard
ISO 8434-6
Standard connection 1
ISO 11926-3
Surface
electro galvanised
Type
elbow 90
FAQ
Frequently asked questions
Yes, these adaptors are designed for hydraulic applications and are suitable for use in high-pressure systems, but always check compatibility with your specific system requirements.
Yes, these adaptors can be used with both steel and rubber hydraulic hoses, provided the thread sizes and types match your hose fittings.
Standard spanners or wrenches are typically sufficient for installation. Ensure threads are clean and use appropriate sealing methods if required.
