BSP MALE TAPERED - BSP FEMALE Products

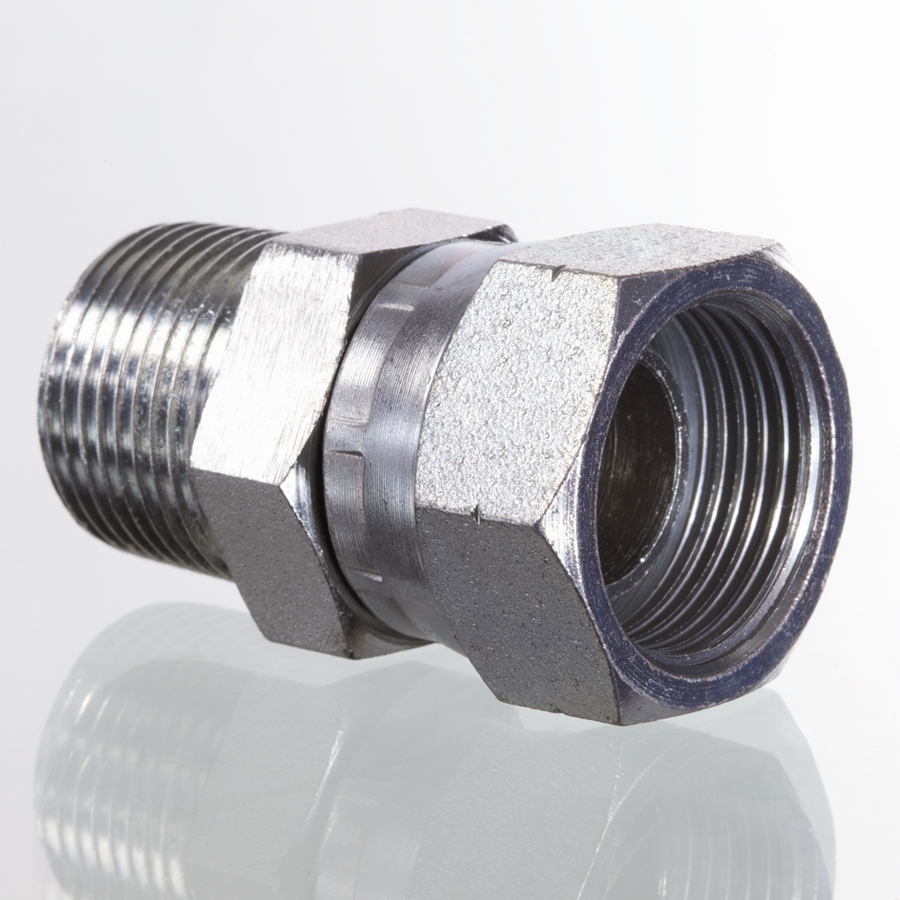

BSP MALE TAPERED - BSP FEMALE

Filters

G1

R 1/8 -28
R 3/8 -19
R 1/2 -14
R 3/4 -14
R 1 -11
R 1.1/4 -11
R 1.1/2 -11
R 2 -11

G2

G 1/8 -28
G 3/8 -19
G 1/2 -14
G 3/4 -14
G 1 -11
G 1.1/4 -11
G 1.1/2 -11
G 2 -11

L1

25.5 mm
33 mm
40.5 mm
35.5 mm
43.5 mm
51.5 mm
60 mm
60.5 mm
70 mm

Connection 1

BSPT male thread, tapered

Connection 2

BSPP nut thread, cylindrical

Construction type

screw-in socket

Material

steel

Sealing form 1

thread seal

Sealing form 2

60 inner cone

Standard

ISO 8434-6

Standard connection 1

DIN 3852-2

Surface

electro galvanised

Type

straight

Customs tariff number

73079910
