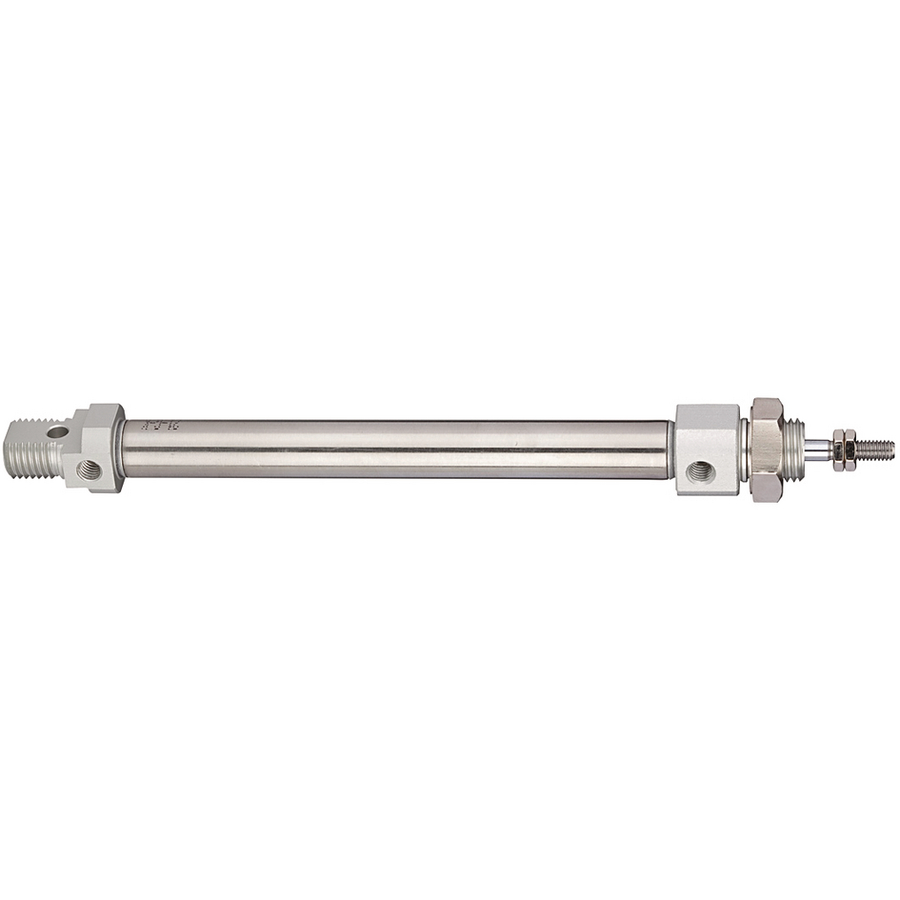

K-RUNDZYLINDER DOPP O E D MI Products
Filters
Piston
8 mm
10 mm
16 mm
12 mm
20 mm
25 mm
32 mm
40 mm
stainless steel 1.4305 (8-12 mm); aluminium (16-40 mm)
Stroke
10 mm
15 mm
40 mm
30 mm
25 mm
20 mm
50 mm
75 mm
60 mm
80 mm
100 mm
125 mm
160 mm
150 mm
200 mm
175 mm
250 mm
300 mm
350 mm
400 mm
450 mm
600 mm
500 mm
Design
Type CA, acc. to ISO 6432
Type CM
Type CA = ground cover with threaded pin - swivel design
Working pressure
1 - 10 bar (double-acting); 2 - 10 bar (single-acting)
Piston rod
stainless steel 1.4301
Seal
NBR
Cylinder tube
stainless steel 1.4301
Media
filtered, unlubricated or lubricated compressed air. Please pay attention to continuous lubrication.
Temp. range
-20 C to +70 C
Customs tariff number
84123100
