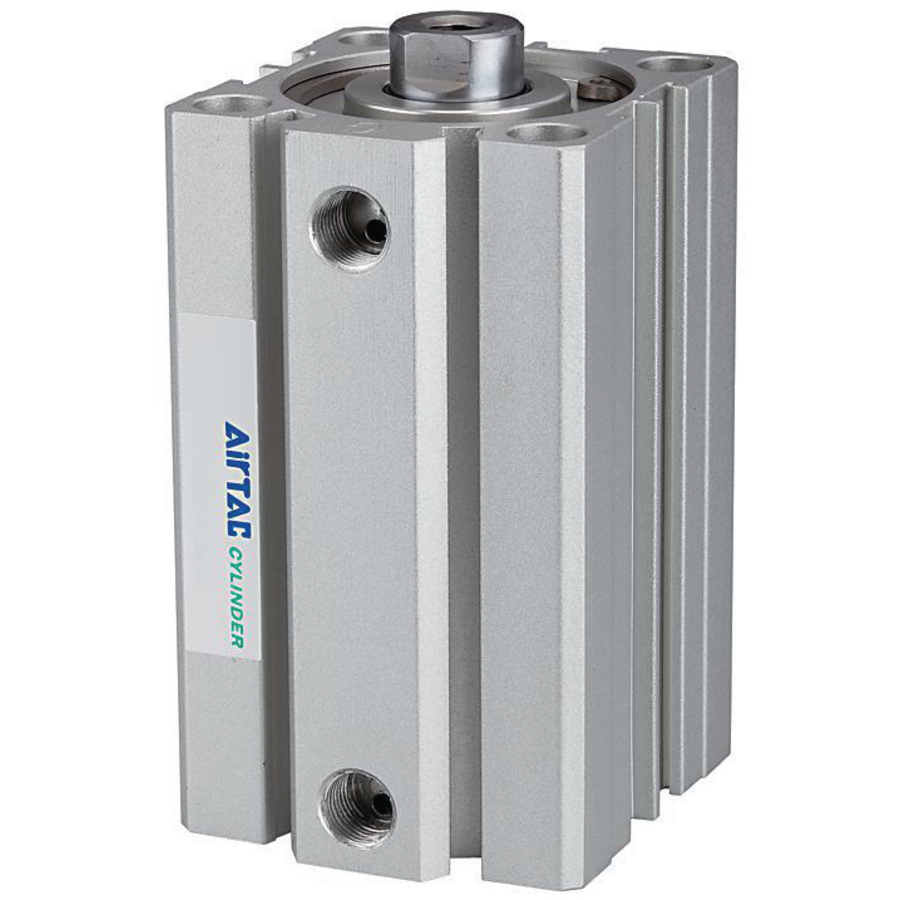

K-KURZH ZYL DOPPELW IG ASQ Products
Filters
Piston
12 mm
16 mm
20 mm
25 mm
32 mm
40 mm
50 mm
63 mm
80 mm
100 mm
brass (12 - 16 mm); aluminium (20 - 100 mm)
Stroke
10 mm
5 mm
25 mm
20 mm
30 mm
35 mm
50 mm
45 mm
40 mm
55 mm
60 mm
70 mm
80 mm
75 mm
Piston rod
6 mm
8 mm
10 mm
12 mm
16 mm
32 mm
tempered steel, hard chrome-plated
Type
3
Seal
NBR
Cylinder tube
aluminium
Media
filtered, unlubricated or lubricated compressed air. Please pay attention to continuous lubrication.
Temp. range
-20 C to +80 C
Working pressure
1 - 10 bar (double-acting); 2 - 10 bar (single-acting)
Customs tariff number
84123100
