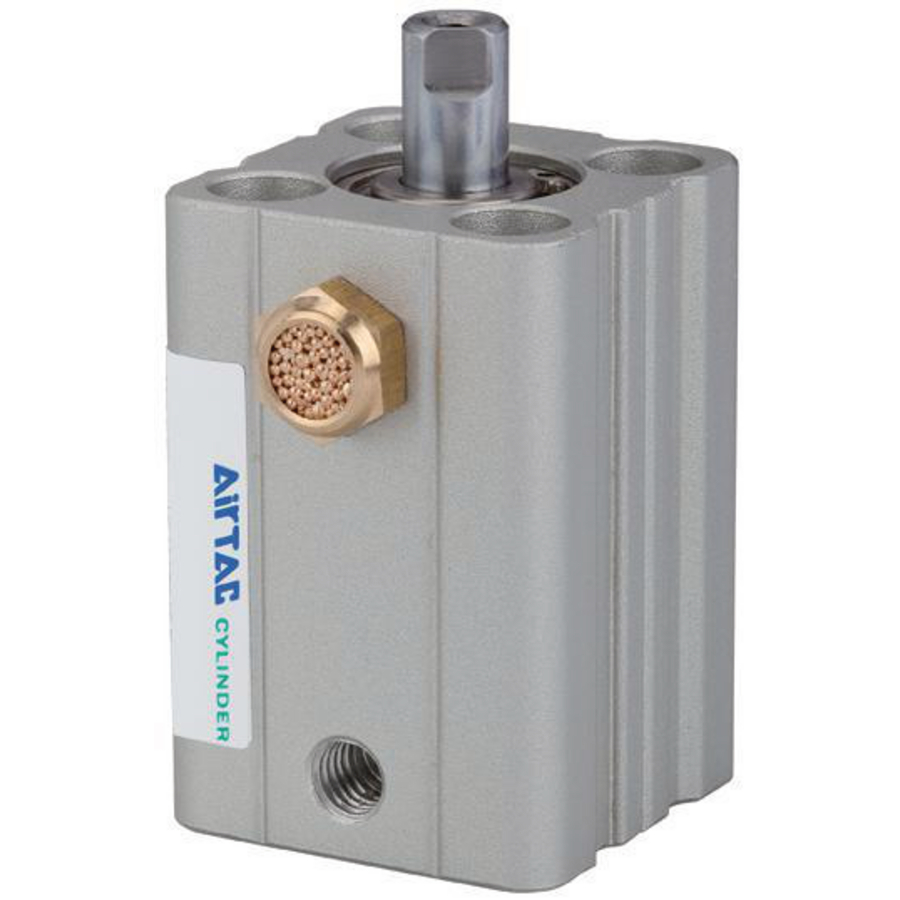

K-KURZH ZYL EINFACHW SER ASQ Products
Filters
Piston
12 mm
16 mm
20 mm
25 mm
32 mm
40 mm
50 mm
63 mm
brass (12 - 16 mm); aluminium (20 - 100 mm)
Stroke
5 mm
10 mm
15 mm
20 mm
25 mm
30 mm
Type
4
5
6
Piston rod
tempered steel, hard chrome-plated
Seal
NBR
Cylinder tube
aluminium
Media
filtered, unlubricated or lubricated compressed air. Please pay attention to continuous lubrication.
Temp. range
-20 C to +80 C
Working pressure
1 - 10 bar (double-acting); 2 - 10 bar (single-acting)
Customs tariff number
84123100
