K-MANO 1 Products
Filters
Measuring range
0 to 25.0 bar
0 to 60.0 bar
0 to 6.0 bar
0 to 100 bar
Thread
G 1/4 -19
G 1/2 -14
63 mm
100 mm
Accuracy class
1,6 ( 63 mm), 1,0 ( 100 mm)
Ambient temperature
-40 C bis 60 C
Application
for gaseous or liquid, corrosive and crystallising media which do not have high viscosity, also in aggressive atmosphere

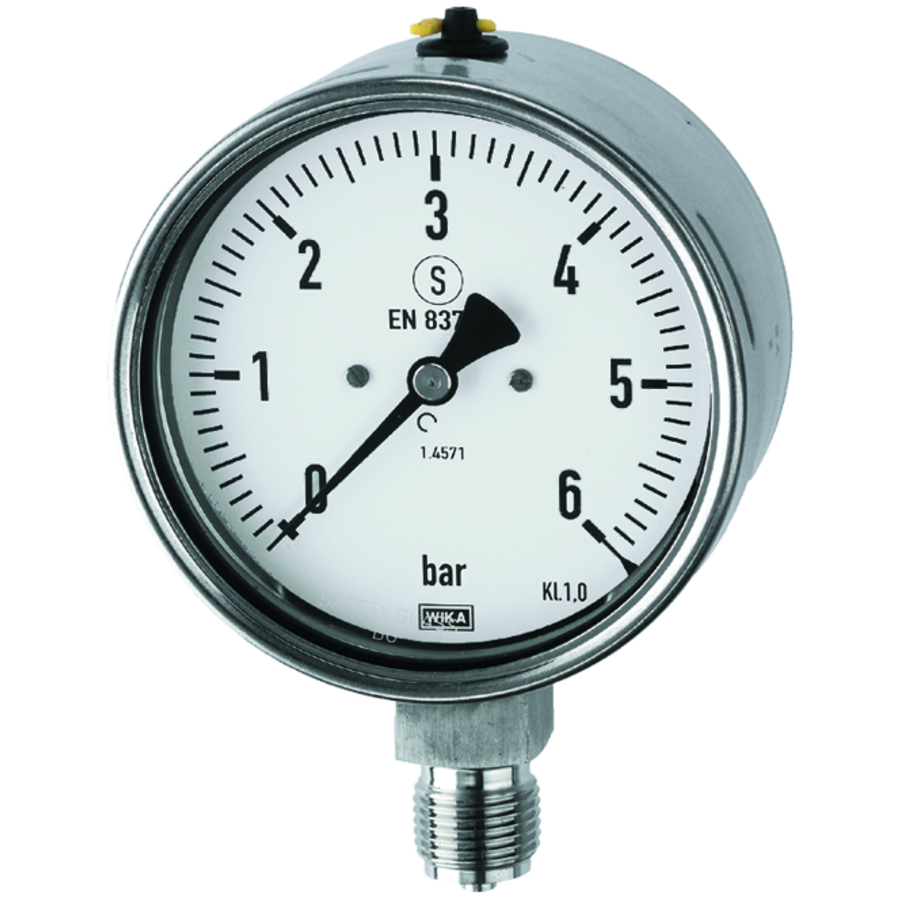

Design
bourdon-tube pressure gauge, CrNi steel type, with solid baffle wall and blow-out (safety housing)
Housing
CrNi steel
Inspection glass
multi-layer safety glass 63 = polycarbonate
Media temperature
max. +200 C
Nominal size
63 mm
Type
232.30
Customs tariff number
90262040
