K-RMM HFR STAHLBLECH SCHW Products
Filters
Connecting thread
G 1/8 -28
G 1/4 -19
Measuring range
0 to 6.0 bar
0 to 16.0 bar
0 to 10.0 bar
0 to 25.0 bar
-1 / 0.0 bar
0 to 2.5 bar
0 to 40.0 bar
0 to 4.0 bar
0 to 60.0 bar
0 to 1.0 bar
40 mm
50 mm
Type
111.12
Accuracy class
1,6
Design

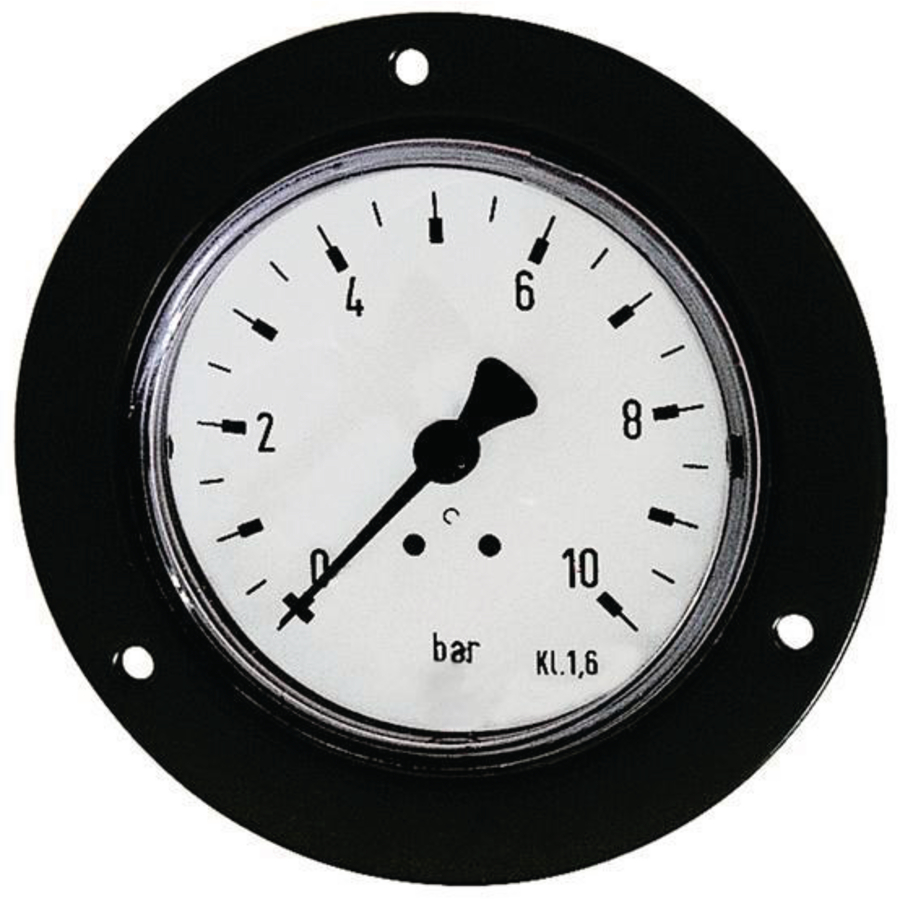

bourdon-tube pressure gauge, standard design, mounting ring
Ambient temperature
-20 C to +60 C
Media temperature
Max. 60 C
Inspection glass
plastic, crystal clear
Measuring element and movement
copper alloy
Application
gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise
Housing
steel steel
Customs tariff number
90262040
