K-RMM U KUNSTSTOFF Products
Filters
Thread
G 1/8 -28
G 1/4 -19
Measuring range
0 to 6.0 bar
0 to 16.0 bar
0 to 1.6 bar
0 to 2.5 bar
0 to 40.0 bar
0 to 25.0 bar
-1 / 0.0 bar
0 to 10.0 bar
0 to 1.0 bar
0 to 4.0 bar
0 to 100 bar
0 to 60.0 bar
40 mm
50 mm
Type
111.10
Accuracy class
1.6 (Art. No. K-07200454: 2.5)
Design

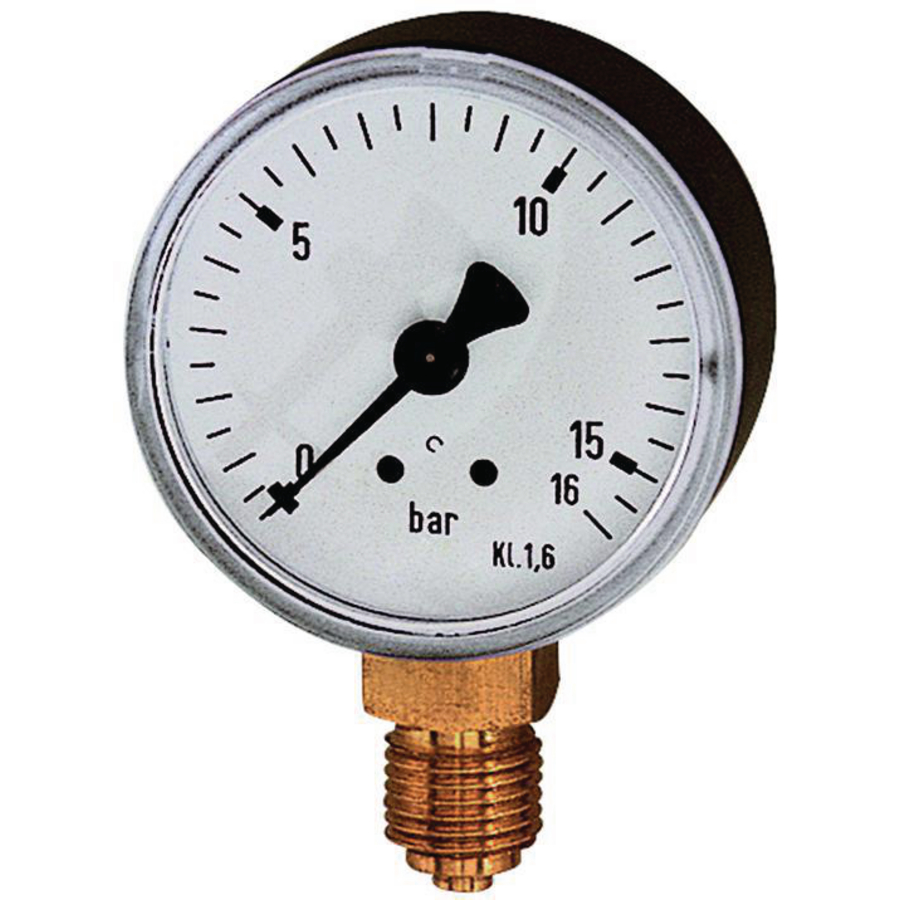

bourdon-tube pressure gauge in standard design
Ambient temperature
-20 C to +60 C
Media temperature
Max. 60 C
Inspection glass
plastic, crystal clear
Application
gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise
Housing
plastic
Measuring element and movement
copper alloy
Customs tariff number
90262040
