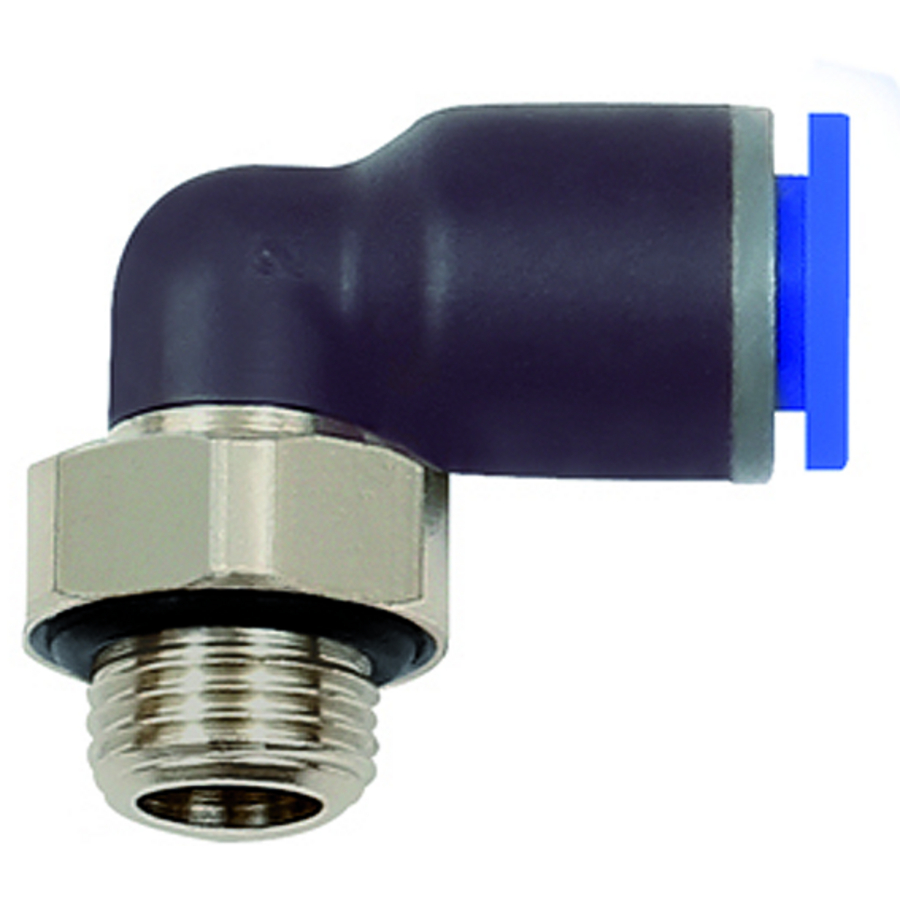

PWHRO BS Products
Filters
Thread
G 1/8 -28
G 1/4 -19
G 3/8 -19
For hose external
6mm
8 mm
L1
20 mm
22.5 mm
Application
air, vacuum
Contact pressure ring
plastic
Material
plastic resp. nickel-plated brass
Media
compressed air and all gases or liquids that are compatible with the materials
Recommended hoses
PU or PA (nylon)
Sealing surface
Parallel version: O-ring in housing
Temp. range
-20 C to +80 C
Working pressure
Max. 15 bar, coarse vacuum
Customs tariff number
39174000
