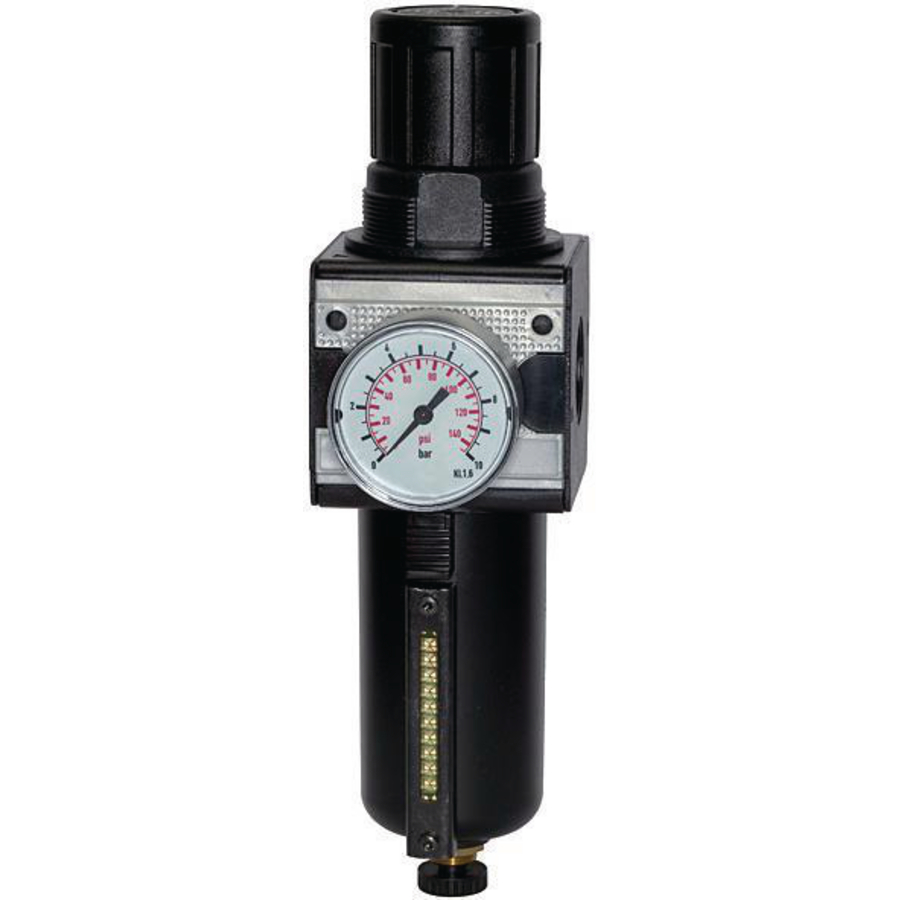

K-FI REGL METALLBEHAE S MANO MULTIF Products
Filters
Control range
0.5 - 10 bar
DN
10
15
20
25
Flow
1,500 l/min
3,500 l/min
12,000 l/min
Input pressure
Max. 16 bar (polycarbonate bowl), Max. 20 bar (metal bowl)
Ambient temperature
Max. 60 C
Media temperature
Max. 60 C
Drain valve
Semi-automatic
Flow rate measurement
At P1 = 8 bar, P2 = 6 bar and pressure drop p = 1 bar
Housing
zinc die-cast, aluminium for version G 1
Pore size in filter element
5 m (C55: 40 m)
Seal
NBR
Spring bonnet
POM-brass
Customs tariff number
84811005
