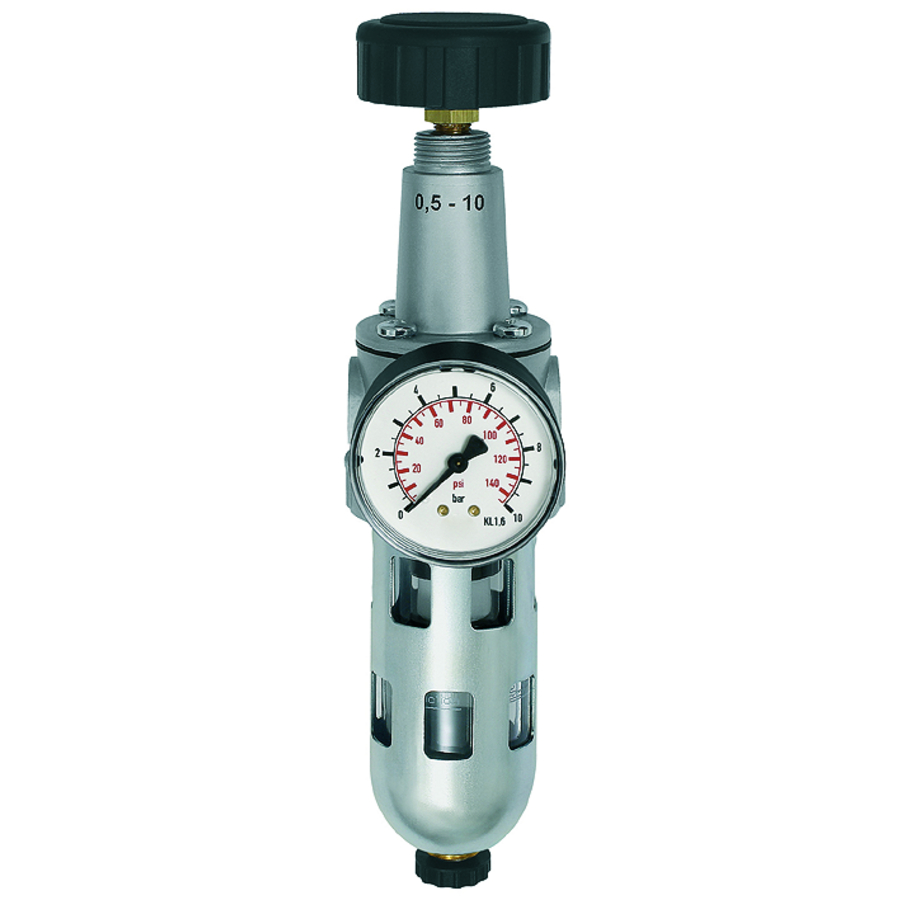

K-FI REGL PC-BEHAEL S H ABL STANDAR Products
Filters
DN
8
11
14
25
Flow
900 l/min
1,500 l/min
3,000 l/min
7,000 l/min
Thread
G 1/4 -19
G 3/8 -19
G 1/2 -14
G 1 -11
Input pressure
Max. 16 bar (polycarbonate bowl), Max. 25 bar (metal bowl)
Ambient temperature
Max. 60 C
Media temperature
Max. 60 C
Control range
0.5 to 10 bar (polycarbonate bowl), 0.5 to 16 bar (metal bowl)
Flow rate measurement
At P1 = 8 bar, P2 = 6 bar and pressure drop p = 1 bar
Housing
zinc die-cast (G 1/4 to G 1/2), silver coated / aluminium (G 3/4 to G 1), silver coated
Pore size in filter element
5 m (Size 1 / Size 3), 40 m (Size 2 / Size 4)
Seal
NBR
Customs tariff number
84811005
