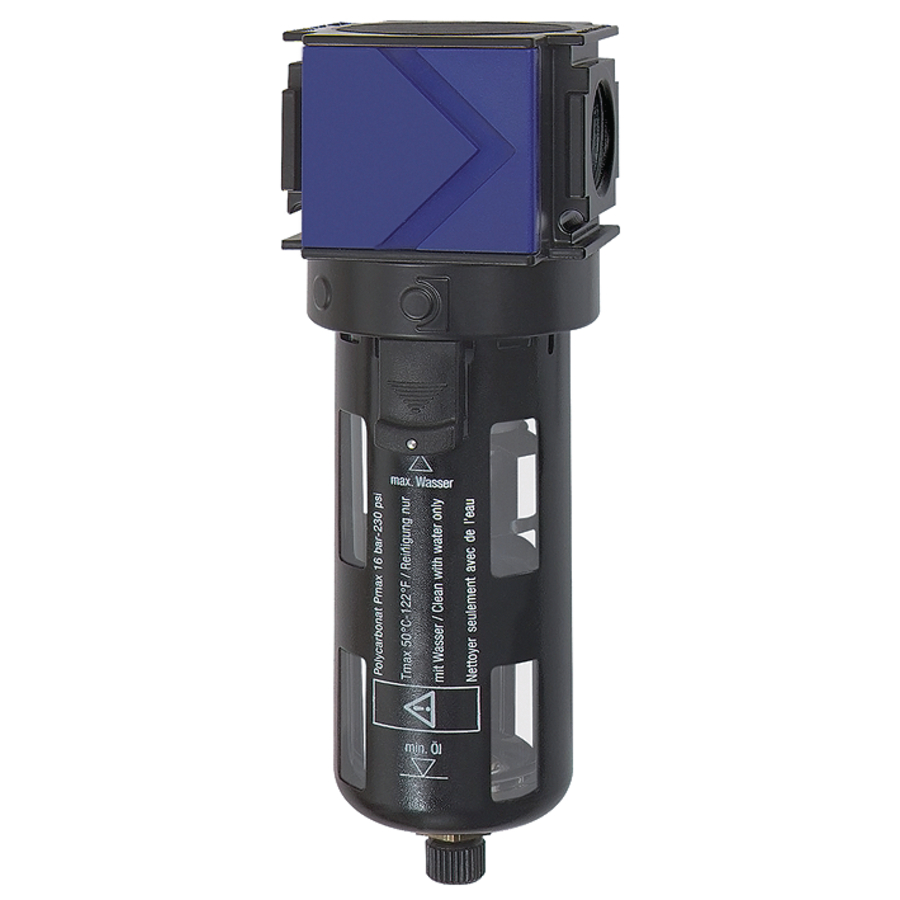

K-FI PC-BEHAELTER SCHUTZ VARIOBLOC Products
Filters
A
124 mm
48 mm
70 mm
Ambient temperature
Max. 50 C (polycarbonate bowl), Max. 80 C (metal bowl)
Customs tariff number
84213915
Drain valve
Manual
Flow
1,800 l/min
2,000 l/min
3,200 l/min
3,500 l/min
Flow rate measurement
At P1 = 6 bar and pressure drop p = 1 bar
Housing
die-cast zinc
Input pressure
Max. 16 bar (polycarbonate bowl), Max. 20 bar (metal bowl)
Media temperature
max. 50 C
Pore size in filter element
40 m
Seal
NBR
Thread
G 1 -11
G 1/2 -14
G 1/4 -19
G 3/8 -19
