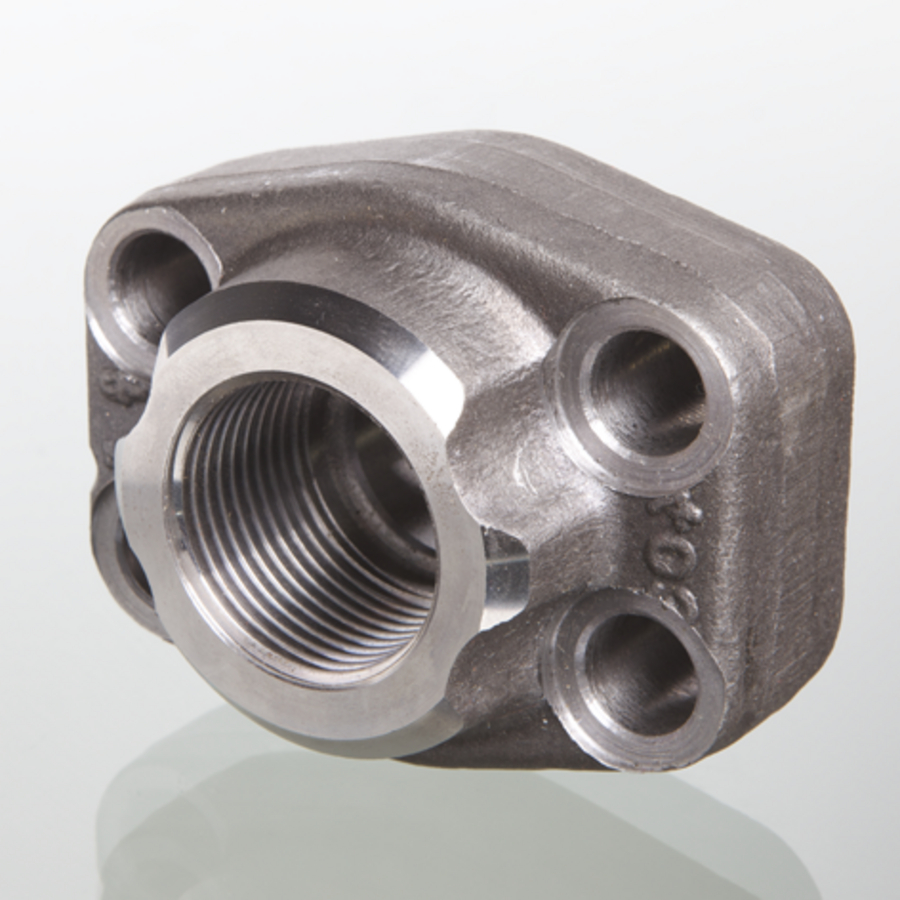

The AFS G (6000 PSI) category features SAE high pressure screw-in flanges with BSP internal threads, designed for demanding hydraulic applications. These flanges are ideal for engineers, mechanics, and agricultural professionals in Ireland who require secure, leak-resistant connections for hydraulic systems operating at up to 6000 PSI. Available in a range of sizes, they ensure compatibility with various pipe and hose configurations, supporting reliable fluid transfer in high-pressure environments.
Key features & uses
- Key features include robust construction, BSP internal threads, and suitability for 6000 PSI hydraulic systems. Commonly used in agricultural, engineering, and industrial hydraulic installations where secure, high-pressure connections are essential.
Related categories
Filters
A
G 1 -11
G 1.1/2 -11
G 1.1/4 -11
G 1/2 -14
G 2 -11
G 3/4 -14
G 3/8 -19
Construction type
SAE screw-in flange
Customs tariff number
73079100
D
112 mm
71 mm
81 mm
E
18.2 mm
23.8 mm
27.8 mm
36.5 mm
44.5 mm
Material
S 355 J2 G3
Mounting
screw bore hole
Pressure series
6,000 psi
Size
1
1.1/2
1/2
2
3/4
Standard
SAE J 518 C
Surface
In the changeover from black oiled to electroplated.
Type
straight
FAQ
Frequently asked questions
Yes, these flanges feature BSP internal threads, making them compatible with standard BSP hydraulic fittings.
All flanges in this category are rated for hydraulic systems up to 6000 PSI.
Yes, these flanges are suitable for agricultural, engineering, and workshop hydraulic applications.
