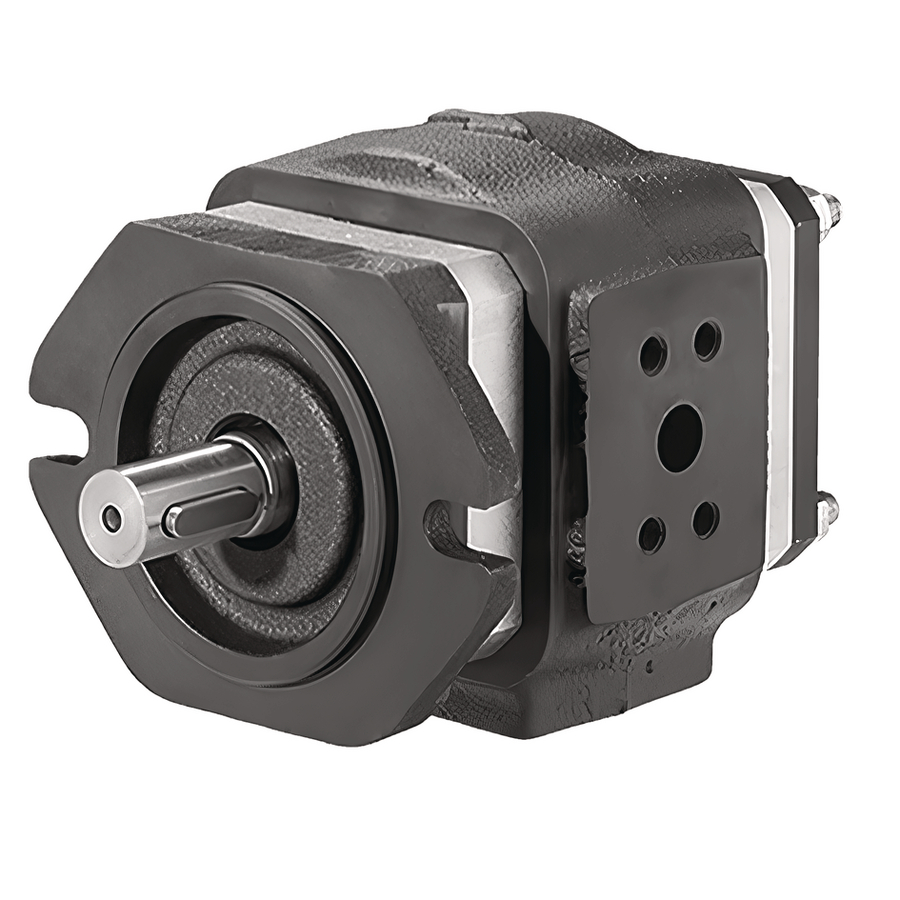

HK EIPH 2 Products
Filters
Connection drive side
Hole pattern 106.4 - 82.5.
Hole pattern 146 - 101.6.
VFU
4.2 cm3
5.4 cm3
6.4 cm3
7.9 cm3
10.9 cm3
13.3 cm3
15.8 cm3
19.3 cm3
22.2 cm3
25.2 cm3
P1 max.
330 bar
300 bar
250 bar
Design
Internal gear pump with axial and radial gap compensation
Shaft
Cylindrical shaft 20 x 36.
Connection suction side
SAE-flange J 518C / ISO 6162
Connection pressure side
SAE-flange J 518C / ISO 6162
Direction of rotation
clockwise rotating
Media
HL - HLP DIN 51524 Part 1/2
Media temperature
-20 C to +80 C
Viscosity
10 bis 300 cSt
Sound level
53 - 63 db(A)
Material
housing: cast iron
Seals
Viton
Customs tariff number
84136031
