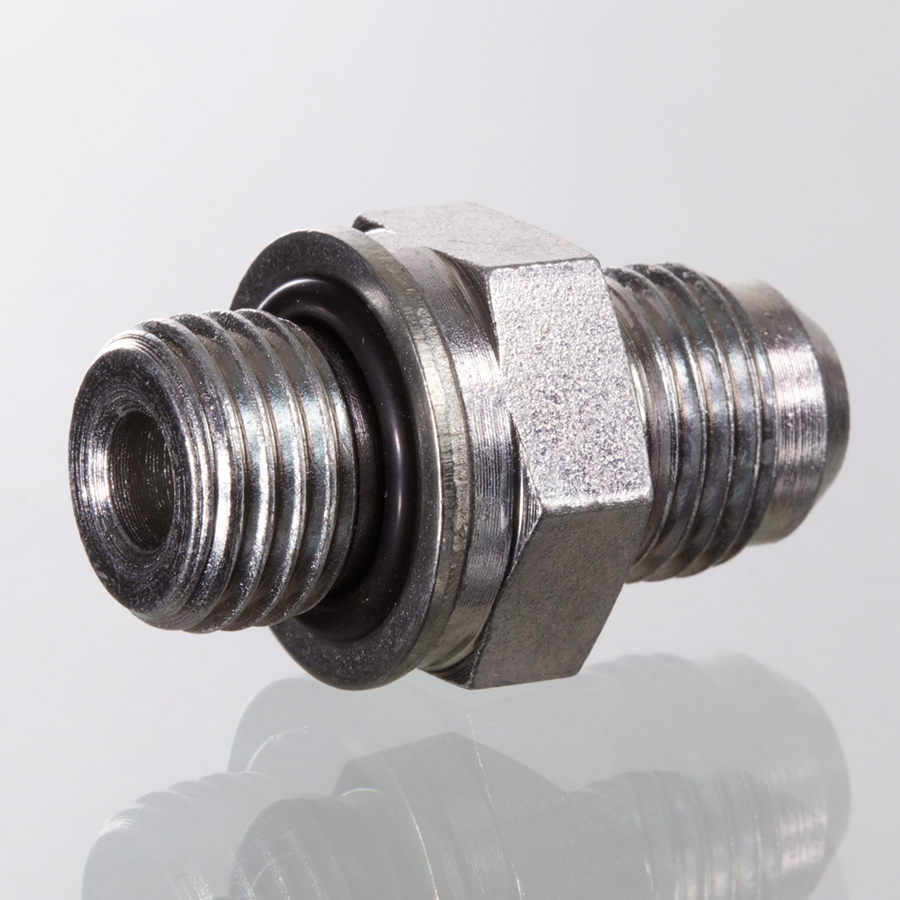

METRIC MALE (FLAT SEAL) - JIC MALE Products
Filters
Connection 1
Metric male thread, parallel
Connection 2
UN male thread, parallel
Construction type
screw-in socket
Customs tariff number
73079910
G1
M 10 x 1
M 12 x 1.5
M 14 x 1.5
M 16 x 1.5
M 18 x 1.5
M 20 x 1.5
M 22 x 1.5
M 26 x 1.5
M 27 x 2
M 33 x 2
M 42 x 2
M 48 x 2
G2
UN 1.1/16 -12
UN 1.3/16 -12
UN 1.5/16 -12
UN 1.5/8 -12
UN 1.7/8 -12
UNF 1/2 -20
UNF 3/4 -16
UNF 7/16 -20
UNF 7/8 -14
UNF 9/16 -18
Material
steel
OR
11.3 x 2.2
11.30 x 2.30
13.3 x 2.2
13.30 x 2.30
15.3 x 2.2
15.30 x 2.30
17.30 x 2.30
19.3 x 2.2
19.30 x 2.30
23.47 x 2.95
23.50 x 2.60
23.6 x 2.9
29.6 x 2.9
29.74 x 2.95
38.00 x 3.00
44.00 x 3.00
44.6 x 2.9
8.00 x 1.50
8.1 x 1.6
9.3 x 2.2
9.30 x 2.30
Sealing form 1
O-ring and retaining ring
O-ring seal, on screw-in socket
Sealing form 2
37 external cone
Standard
ISO 8434-2
Standard connection 1
ISO 6149-3
Surface
electro galvanised
Type
straight
