B NWO-KR Products
Filters
D
55 mm
90 mm
60 mm
140 mm
30 mm
85 mm
100 mm
40 mm
63 mm
50 mm
105 mm
L
11 mm
13 mm
14.5 mm
14 mm
9.5 mm
12.5 mm
G
6.35 mm
Max. sliding velocity
0.5 m/s
Installation
on one-piece pistons
Application
hydraulic systems
Construction type

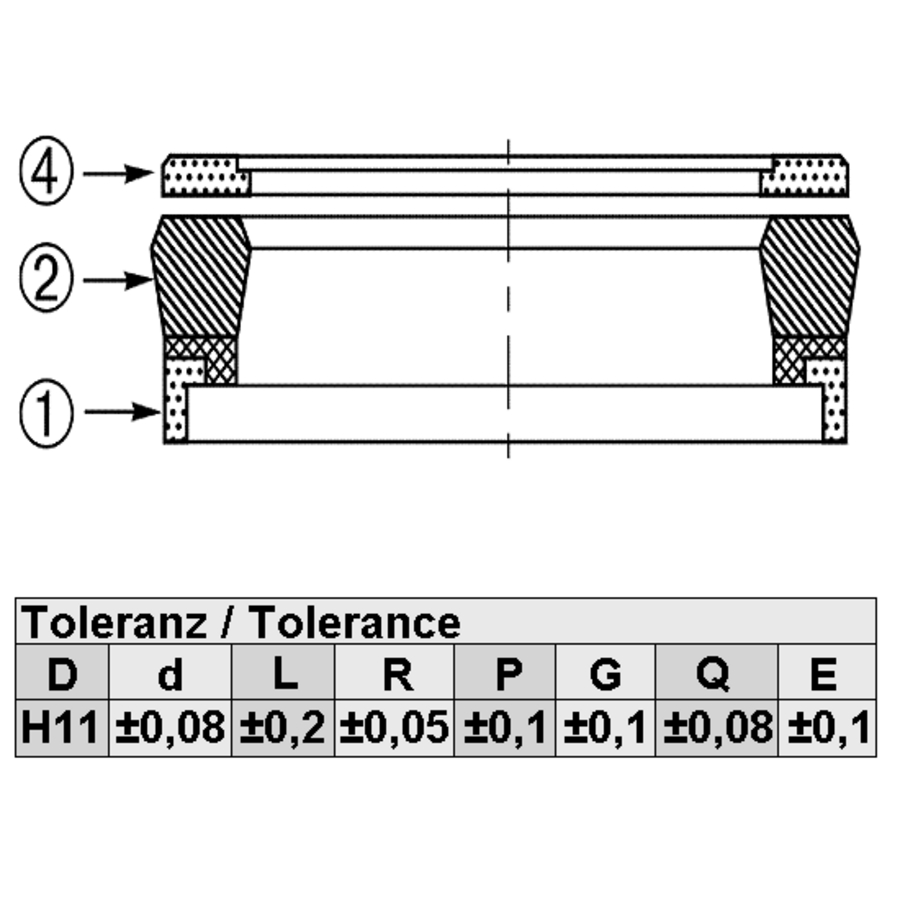

piston seal
Material
(2) seal: fabric-reinforced NBR
Media
mineral oil
Temp. max.
110 C
Temp. min.
-30 C
Working pressure
500 bar
Customs tariff number
40169300
