D11W Products
Filters
Application
hydraulic systems
Customs tariff number
40169300
D
120 mm
130 mm
34.92 mm
85 mm
G
6.35 mm
Installation
on multi-part pistons
L
16.27 mm
19.4 mm
19.45 mm
22.4 mm
24.21 mm
25.4 mm
32.15 mm
35.4 mm
Material

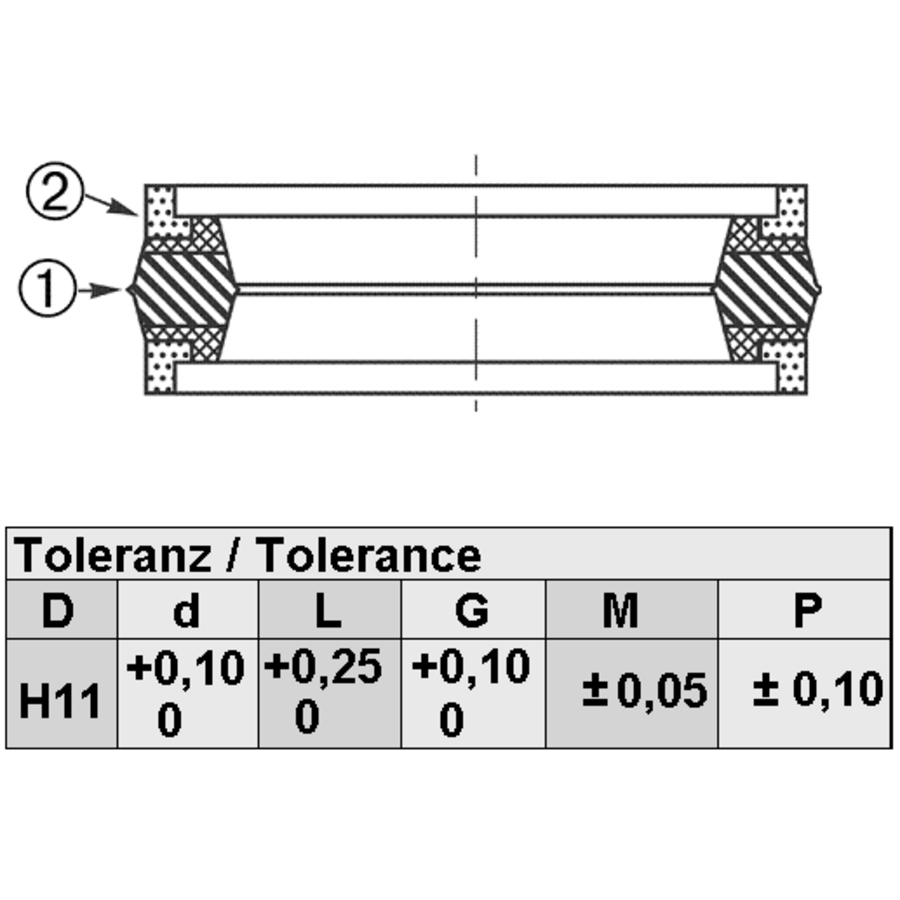

(1) seal: NBR with fabric reinforcement on both sides
Max. sliding velocity
0.5 m/s
Media
mineral oil
Temp. max.
110 C
Temp. min.
-30 C
Working pressure
500 bar
D
100 mm
101.6 mm
105 mm
114.3 mm
150 mm
160 mm
170 mm
25.4 mm
47 mm
47.62 mm
57.15 mm
63.5 mm
80 mm
82.55 mm
88.9 mm
90 mm
