IGR B Products
Filters
D
28 mm
19.3 mm
16 mm
25 mm
22 mm
5 mm
8 mm
30 mm
10 mm
36 mm
18 mm
45.7 mm
22.3 mm
32 mm
20 mm
50 mm
40 mm
45 mm
60 mm
70 mm
71.1 mm
80 mm
24 mm
90 mm
55 mm
38 mm
90.1 mm
42 mm
63 mm
65 mm
63.1 mm
110 mm
125 mm
140 mm
37 mm
115 mm
95 mm
105 mm
120 mm
160 mm
130 mm
170 mm
200 mm
180 mm
270.5 mm
190 mm
280 mm
360 mm
L
4.2 mm
3.2 mm
2.2 mm
6.3 mm
8.1 mm
Max. sliding velocity
15 m/s
Installation
first bend the O-ring and then the PTFE ring into a kidney shape
Application
hydraulic systems

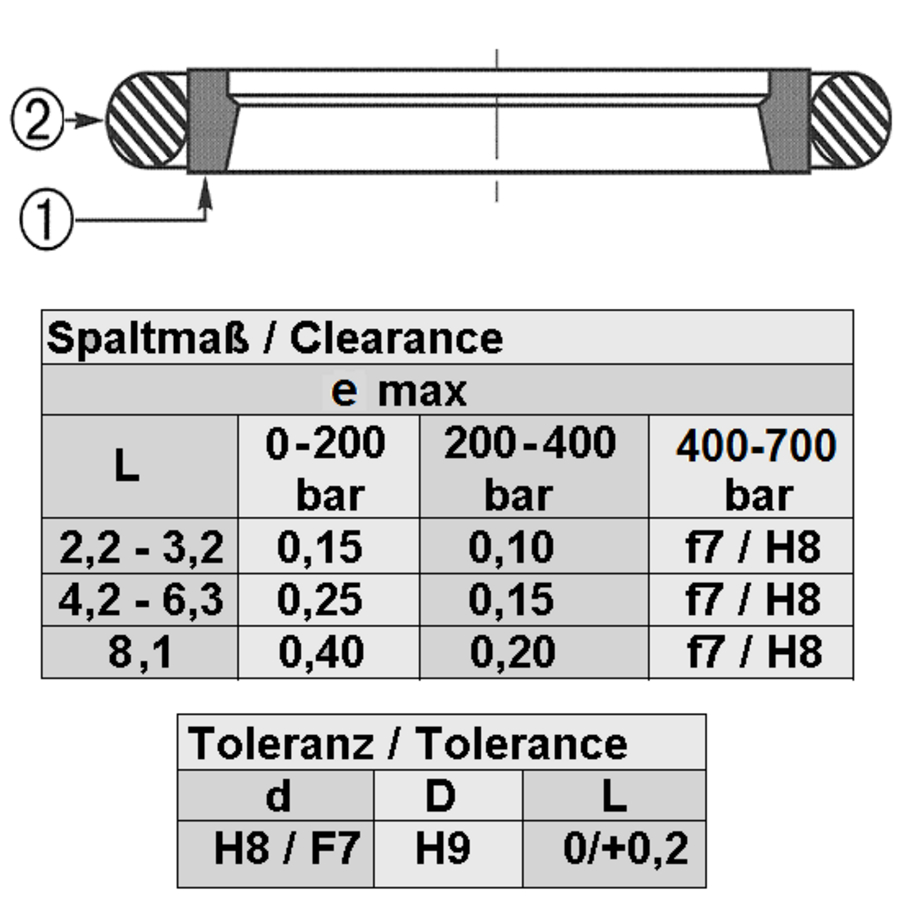

Construction type
rod seal set
Material
(1) dynamic seal: PTBR
Media
mineral oil
Temp. max.
110 C
Temp. min.
-30 C
Working pressure
700 bar
Customs tariff number
39269097
