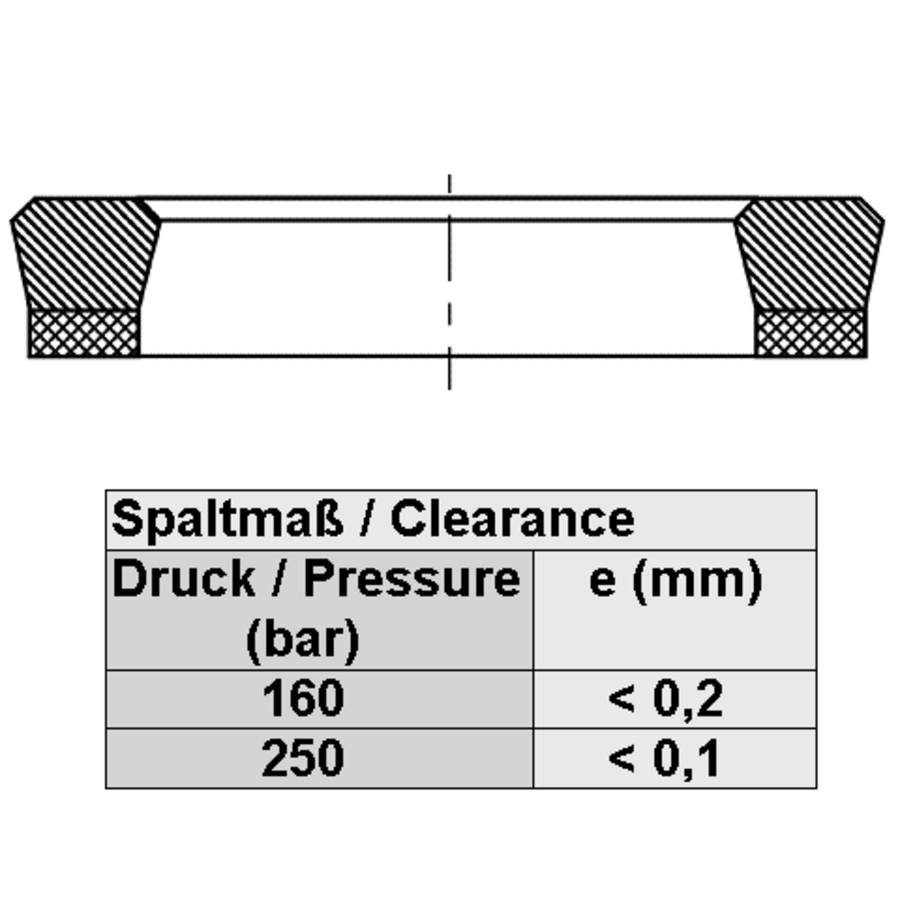

B FPM-C Products
Filters
D
24 mm
28 mm
25 mm
30 mm
40 mm
22 mm
45 mm
60 mm
55 mm
36 mm
50 mm
70 mm
80 mm
L
6.4 mm
8 mm
7.5 mm
11 mm
10 mm
9.6 mm
Max. sliding velocity
0.5 m/s
Installation
in closed or open grooves
Application
hydraulic systems
Construction type
rod seal
Material
FPM-C
Media
mineral oil
Temp. max.
150 C
Temp. min.
-10 C
Working pressure
250 bar
Customs tariff number
40169300
