B NEI Products
Filters
Application
hydraulic systems
Construction type
rod seal
Customs tariff number
40169300
Grooves according to
ISO 5597
Installation
in closed grooves A
L
10 mm
10.5 mm
10.8 mm
11 mm
11.5 mm
12 mm
12.5 mm
13 mm
13.5 mm
14.5 mm
15.5 mm
16 mm
20.5 mm
6 mm
6.3 mm
6.4 mm
6.5 mm
7 mm
7.5 mm
7.62 mm
8 mm
8.5 mm
9 mm
9.25 mm
9.5 mm

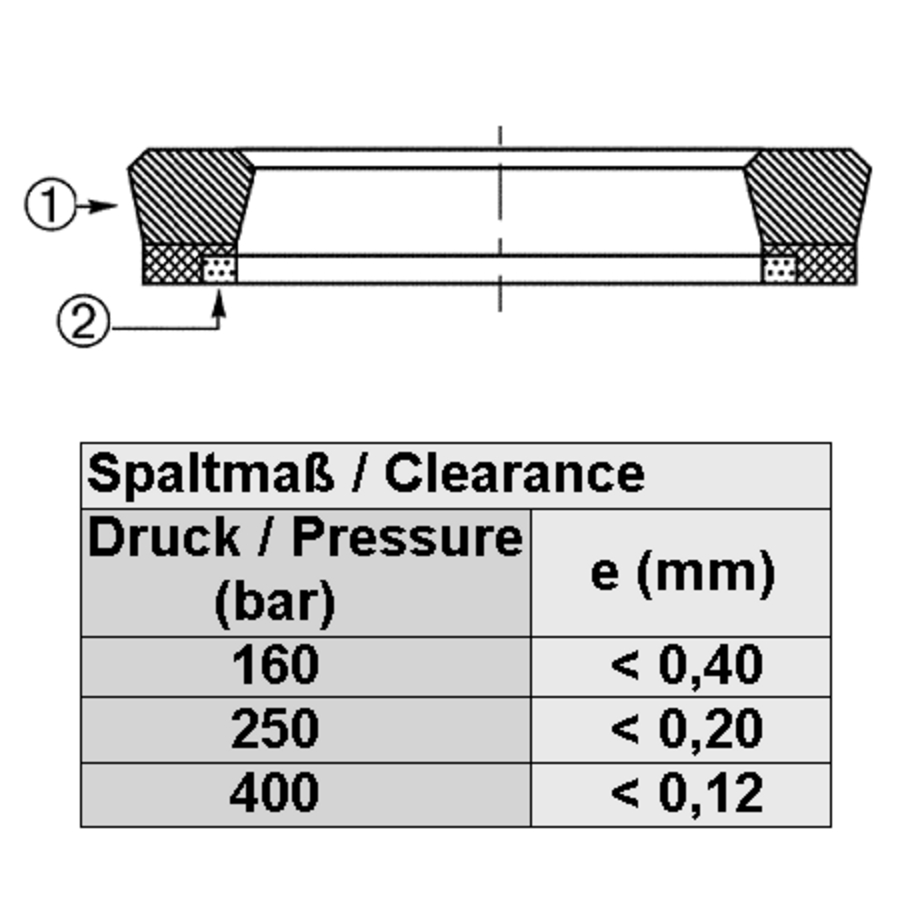

Material
(1) seal: fabric-reinforced NBR
Max. sliding velocity
0.5 m/s
Media
mineral oil
Temp. max.
110 C
Temp. min.
-30 C
Working pressure
400 bar
D
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
145 mm
150 mm
160 mm
18 mm
180 mm
190 mm
20 mm
200 mm
22 mm
220 mm
25 mm
27 mm
28 mm
28.57 mm
30 mm
32 mm
35 mm
36 mm
38.1 mm
40 mm
44 mm
44.45 mm
45 mm
48 mm
50 mm
55 mm
56 mm
60 mm
62 mm
63 mm
65 mm
69.85 mm
70 mm
71 mm
72 mm
75 mm
78 mm
80 mm
85 mm
90 mm
95 mm
