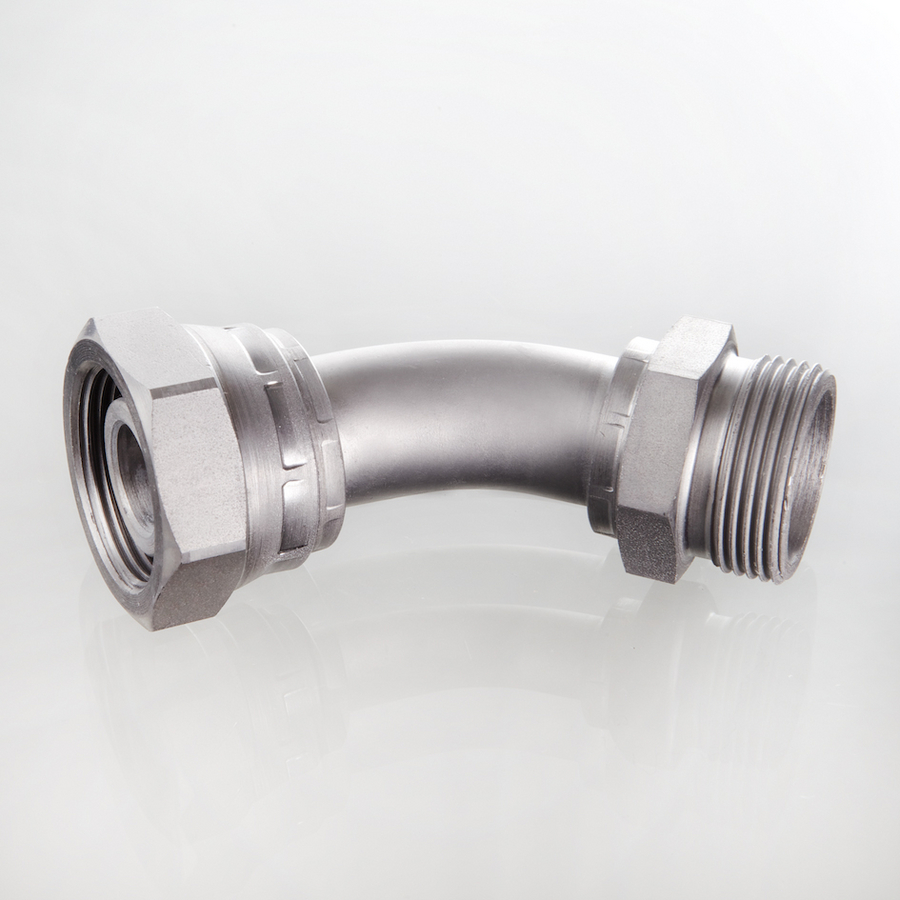

WB45 AOL HL Products
Filters
Tube outer
8 mm
10 mm
15 mm
6 mm
18 mm
22 mm
28 mm
35 mm
42 mm
Calculated design pressure
315 bar
160 bar
OR
6.0 x 1.5
7.5 x 1.5
12.0 x 2.0
4.0 x 1.5
15.0 x 2.0
20.0 x 2.0
26.0 x 2.0
32.0 x 2.5
38.0 x 2.5
Connection 1
Metric nut thread, parallel
Connection 2
Metric male thread, parallel
Construction type
Connecting socket (short tube bend)
Material
steel
Sealing form 1
24 outer cone with O-ring
Sealing form 2
24 inner cone
Standard
ISO 8434-1
Surface
electro galvanised
Type
angle 45
Customs tariff number
73079910
