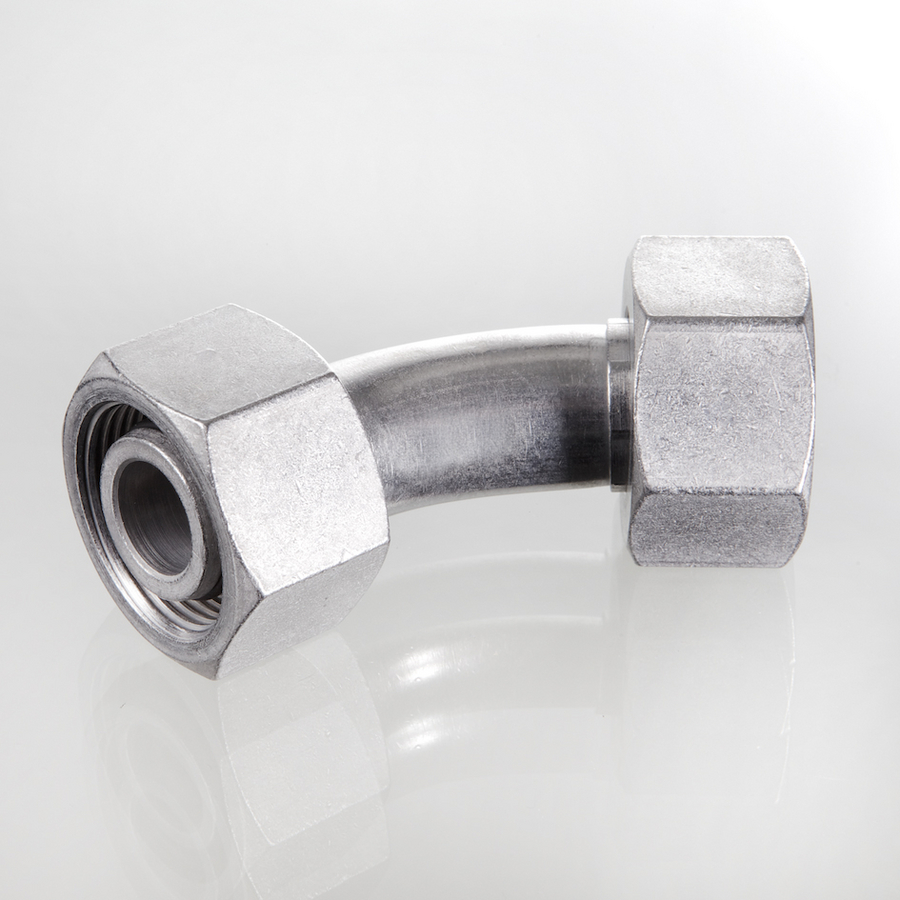

WB45 AOS Products
Filters
Tube outer
12 mm
16 mm
8 mm
25 mm
38 mm
20 mm
6 mm
Calculated design pressure
600 bar
400 bar
315 bar
OR1 + OR2
9.0 x 1.5
12.0 x 2.0
6.0 x 1.5
20.3 x 2.4
33.2 x 2.4
16.3 x 2.4
4.0 x 1.5
Connection 1
Metric nut thread, parallel
Connection 2
Metric nut thread, parallel
Construction type
Connecting socket (short tube bend)
Material
steel
Sealing form 1
24 outer cone with O-ring
Sealing form 2
24 outer cone with O-ring
Standard
ISO 8434-1
Surface
electro galvanised
Type
angle 45
Customs tariff number
73079910
