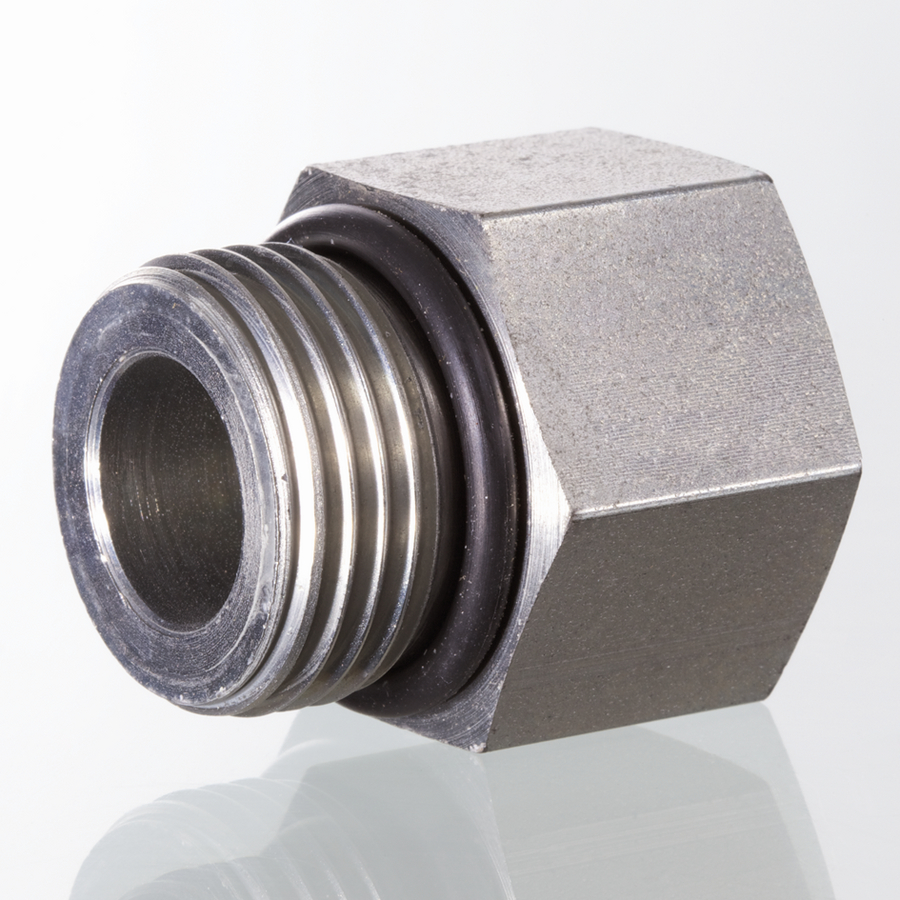

UNF MALE - JIC FEMALE Products
Filters
OR
10.52 x 1.83
9.17 x 1.83
16.36 x 2.20
11.90 x 1.98
19.18 x 2.46
23.47 x 2.95
29.74 x 2.95
37.47 x 3.00
26.62 x 2.95
43.69 x 3.00
G1
UNF 1/2 -20
UNF 7/16 -20
UNF 3/4 -16
UNF 9/16 -18
UNF 7/8 -14
UN 1.1/16 -12
1.5/16 -12 UN
UN 1.5/8 -12
UN 1.3/16 -12
UN 1.7/8 -12
7/8 -14 UNF
UN 1.5/16 -12
G2
UNF 1/2 -20
UNF 7/16 -20
UNF 3/4 -16
UNF 9/16 -18
UNF 7/8 -14
UN 1.1/16 -12
1.5/16 -12 UN
UN 1.5/16 -12
UN 1.5/8 -12
UN 1.3/16 -12
UN 1.7/8 -12
Connection 1
UN male thread, parallel
Connection 2
UN nut thread, parallel
UN female thread, parallel
Construction type
screw-in socket
Material
steel
Sealing form 1
O-ring seal, on screw-in socket
Sealing form 2
37 internal cone
Standard
ISO 8434-2
Standard connection 1
ISO 11926-3
Surface
electro galvanised
Type
straight
Customs tariff number
73079910
SW
35 mm
